Wave speed on a stretched string

A1.5.2 · Unit 3 PhysicsPearson BTEC Level 3 AAQ Applied Science
Unit 3 · A1.5.2

FREE PHYSICS REVISION · UNIT 3 · A1.5.2

Pearson BTEC Level 3 AAQ Applied Science · Issue 7 (May 2026)

Learning objectives

  • Define string tension and linear mass density, distinguishing linear density from total mass.
  • Calculate wave speed using v = √(T/μ) with consistent SI units.
  • Rearrange the relationship to determine tension or linear mass density.
  • Explain how tension, string thickness or vibrating length affects an instrument’s frequency under stated conditions.

Specification mapping: A1.5.2

Prerequisites: A1.5

Physical principles

For small-amplitude transverse waves on a flexible stretched string, v = √(T/μ). Here T means tension in newtons, not period, and μ is mass per unit length in kg m⁻¹. Determine μ from string mass divided by its length. The equation assumes approximately uniform tension and a flexible, uniform string.

Increasing tension increases wave speed, but with a square-root dependence: four times the tension doubles speed. Increasing linear density decreases speed; four times μ halves speed. At fixed vibrating length the fundamental frequency is proportional to speed, so tightening a string raises its pitch while using a heavier string lowers it.

Useful rearrangements are T = μv² and μ = T/v². A dimensional check gives T/μ in (kg m s⁻²)/(kg m⁻¹) = m² s⁻²; its square root has speed units. Total string mass is not a substitute for μ. In an experiment, control vibrating length when studying the effect of tension.

Scientific diagram and interpretation

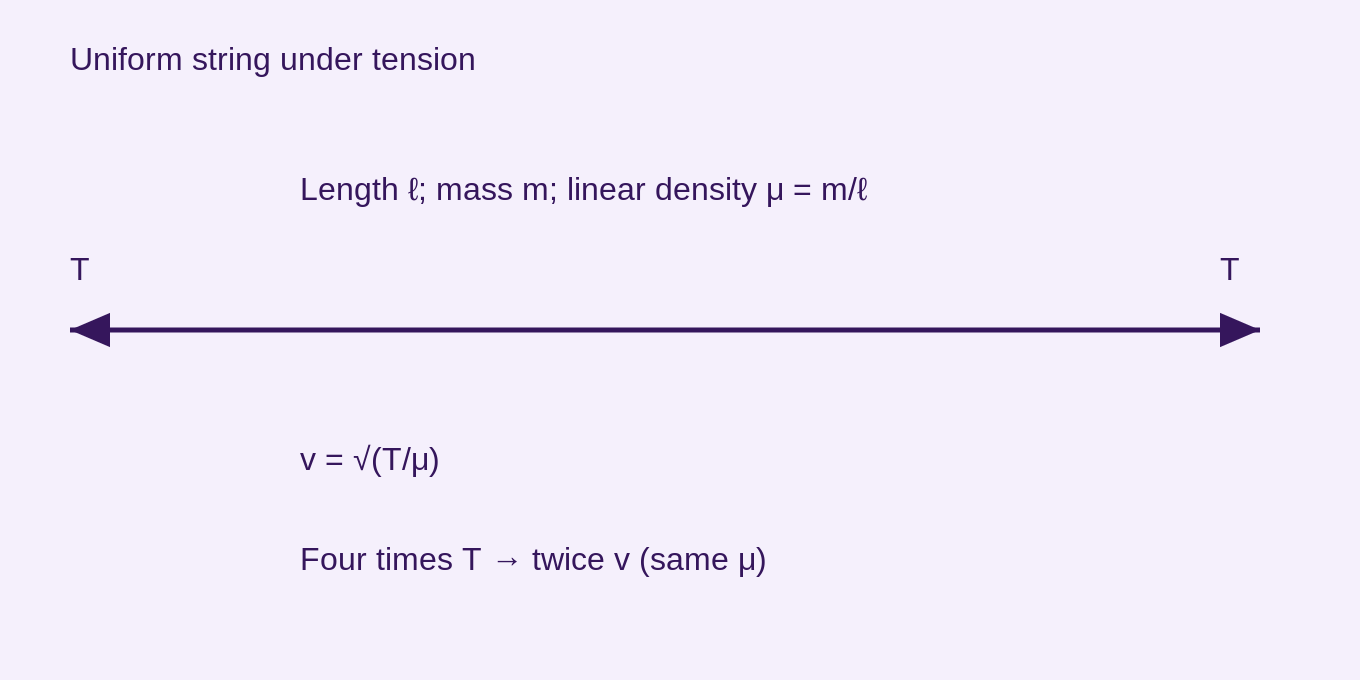

Opposite applied tensions stretch a uniform string; tension magnitude T enters the wave-speed equation. Total mass must first be divided by its length.
Opposite applied tensions stretch a uniform string; tension magnitude T enters the wave-speed equation. Total mass must first be divided by its length.

Equations and relationships

v = √(T/μ)

Worked examples and applications

Speed from tension

A string has T = 80 N and μ = 0.0050 kg m⁻¹. v = √(80/0.0050) = √16000 = 126.49 m s⁻¹ ≈ 1.3 × 10² m s⁻¹ to two significant figures.

Required tension

For v = 120 m s⁻¹ and μ = 0.0020 kg m⁻¹, T = μv² = 0.0020 × 120² = 28.8 N ≈ 29 N.

Find linear density

A 2.0 m uniform string has mass 6.0 g = 0.0060 kg. μ = 0.0060/2.0 = 0.0030 kg m⁻¹. Use the mass of the same length measured.

Common misconceptions

T in this equation is tension, while T in f = 1/T is period. Context and units distinguish them.

Examination technique

Square the speed when rearranging; retain extra calculator digits until the final answer.

For an explanation, connect the physical cause to its effect. For a calculation, state the model, rearrange before substitution, retain intermediate digits, and finish with units. For a data question, refer to the actual readings and distinguish a trend from proof of a cause.

Check your understanding

Five questions. Choose an option, then Check Answer. Read the feedback and use Try Again to reset. Use Tab between controls, arrow keys within radio groups, and Enter or Space on buttons. These local practice answers are not saved.

Question 1 of 5 · A1.5.2

What does μ represent?

Question 2 of 5 · A1.5.2

Quadrupling tension at fixed μ changes speed by…

Question 3 of 5 · A1.5.2

T = 100 N and μ = 0.010 kg m⁻¹ give…

Question 4 of 5 · A1.5.2

Which rearrangement gives tension?

Question 5 of 5 · A1.5.2

A 1.5 m string has mass 3.0 g. Its μ is…
