Velocity–time graphs and travelled distance
FREE PHYSICS REVISION · UNIT 3 · B1.3.4
Pearson BTEC Level 3 AAQ Applied Science · Issue 7 (May 2026)
Learning objectives
- Describe motion represented by different segments of a velocity–time graph.
- Calculate displacement from the signed area between the graph and the time axis.
- Calculate distance travelled by adding area magnitudes when velocity changes sign.
- Explain why displacement and distance differ for a journey with a reversal of direction.
Specification mapping: B1.3.4, B1.3.5
Prerequisites: B1.3.3
Physical principles
A velocity–time graph directly shows velocity at each time. A horizontal line above zero represents constant positive velocity; below zero it represents constant negative velocity. A line crossing zero can represent a reversal. The gradient describes acceleration rather than the vertical height.
Signed area under the graph gives displacement because velocity multiplied by time has units metres. Areas below the time axis count negatively. Total distance is the sum of the magnitudes of all areas, splitting the interval at every zero crossing. When velocity remains non-negative, displacement and distance have the same numerical value; that restricted case explains the specification’s area shorthand.
Calculate rectangular, triangular and trapezium areas for straight segments. Curved segments may require counting squares or numerical approximation with stated assumptions. Do not add triangle areas without checking their signs. A velocity graph cannot show an instantaneous position jump: finite area over time gives a finite displacement.

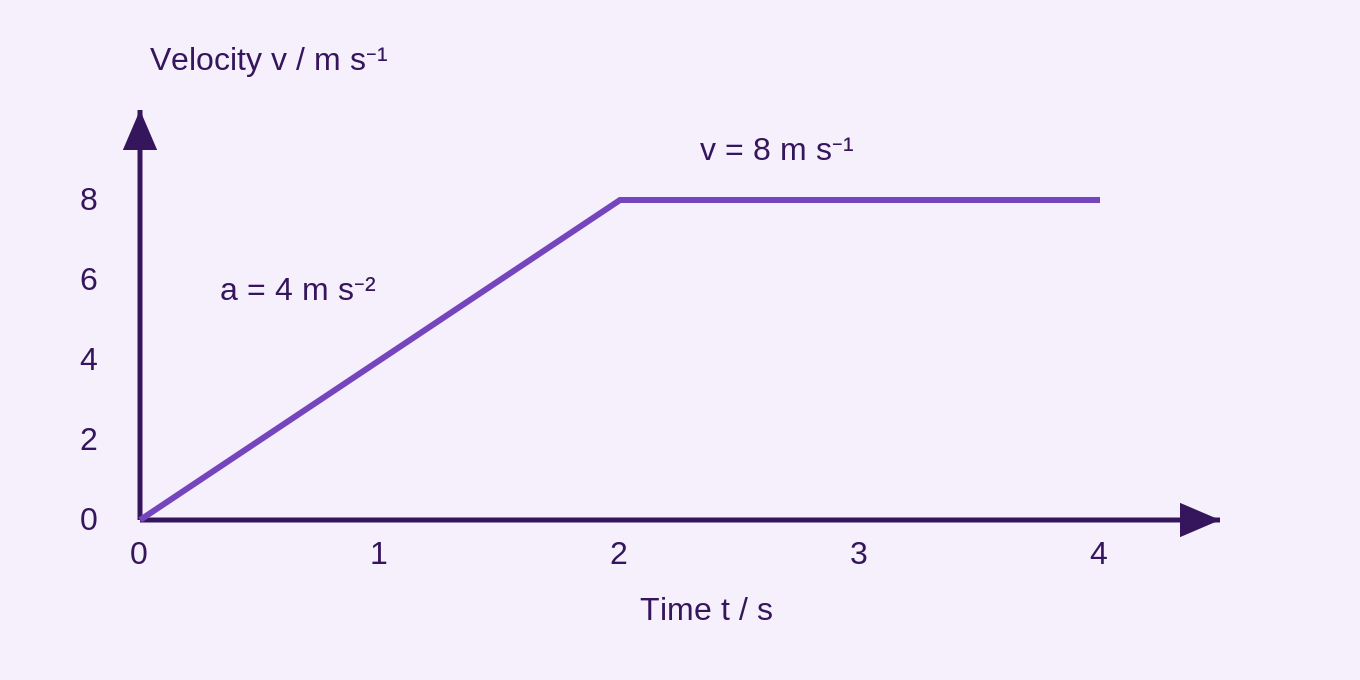

Scientific diagram and interpretation

Equations and relationships
s = signed area under v–t; distance = sum of absolute areas
Worked examples and applications
Two stages
Velocity increases from 0 to 8.0 m s⁻¹ in 2.0 s, then stays at 8.0 m s⁻¹ for another 2.0 s. Distance = ½ × 2.0 × 8.0 + 2.0 × 8.0 = 24 m.
A reversal
Velocity is +3.0 m s⁻¹ for 4.0 s and −2.0 m s⁻¹ for 3.0 s. Displacement = +12 − 6 = +6.0 m. Total distance = 12 + 6 = 18 m.
Common misconceptions
Area below the axis contributes negative displacement but positive distance.
Examination technique
State whether you are finding displacement or total distance before combining areas.
For an explanation, connect the physical cause to its effect. For a calculation, state the model, rearrange before substitution, retain intermediate digits, and finish with units. For a data question, refer to the actual readings and distinguish a trend from proof of a cause.
Check your understanding
Five questions. Choose an option, then Check Answer. Read the feedback and use Try Again to reset. Use Tab between controls, arrow keys within radio groups, and Enter or Space on buttons. These local practice answers are not saved.
