Conditions for total internal reflection

FREE PHYSICS REVISION · UNIT 3 · A2.1.2

Pearson BTEC Level 3 AAQ Applied Science · Issue 7 (May 2026)

What you will learn

Critical angle and two conditions for total internal reflection.

Specification mapping: A2.1.2

Prerequisites: A2.1

Physical principles

Light travelling from a higher-index medium towards a lower-index medium bends away from the normal when it refracts. As incidence increases, the refracted angle increases until the ray runs along the boundary. This incident angle is the critical angle C. Beyond C there is no propagating refracted ray in the lower-index medium in the ideal ray model; total internal reflection occurs.

Two conditions must both hold: light approaches the boundary from the higher-index side, and incidence exceeds the critical angle. At incidence equal to C the refracted ray is at 90° to the normal, so this is the limiting case rather than the usual greater-than condition for TIR. From air into glass there is no such critical angle.

Ordinary partial reflection can occur below C and at boundaries that do not satisfy TIR conditions. “Total” describes reflected intensity in an ideal lossless interface, not absence of absorption or bending losses in a real fibre. Optical fibres guide light by repeated TIR at a higher-index core/lower-index cladding boundary.

Scientific diagram and interpretation

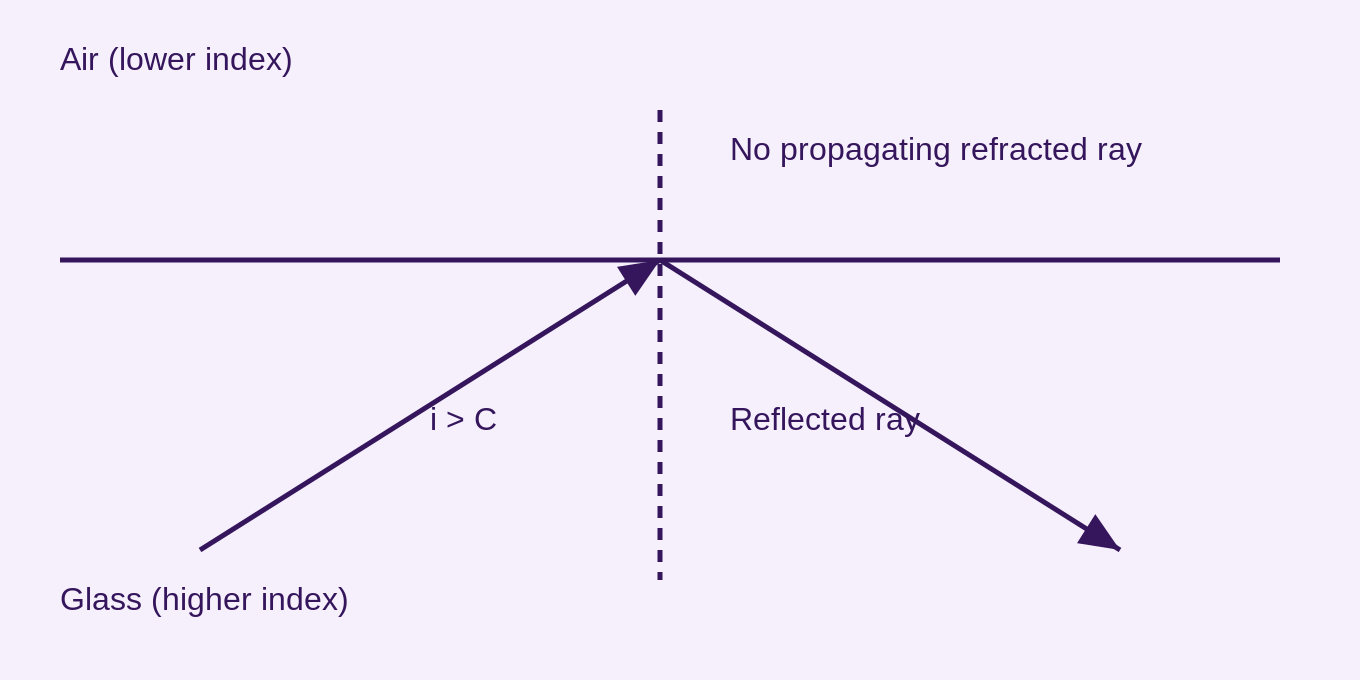

A ray approaches from glass with incidence greater than the critical angle and reflects inside glass. The angle is to the normal; the diagram is schematic.
A ray approaches from glass with incidence greater than the critical angle and reflects inside glass. The angle is to the normal; the diagram is schematic.

Worked examples and applications

Apply both tests

Glass-to-air incidence is 50° and C is 42°. Higher-to-lower index and 50° > 42° both hold, so TIR occurs.

Boundary case

At i = 42° for C = 42°, r = 90°. At i = 35°, refraction and partial reflection can occur. Reversing to air-to-glass prevents TIR whatever the air incidence angle.

Common misconceptions

A large angle alone is insufficient: light must approach from the higher-index material.

Examination technique

State both conditions explicitly and distinguish equality from exceeding C.

For an explanation, connect the physical cause to its effect. For a calculation, state the model, rearrange before substitution, retain intermediate digits, and finish with units. For a data question, refer to the actual readings and distinguish a trend from proof of a cause.

Check your understanding

Five questions. Choose an option, then Check Answer. Read the feedback and use Try Again to reset. Use Tab between controls, arrow keys within radio groups, and Enter or Space on buttons. These local practice answers are not saved.

Question 1 of 5 · A2.1.2

Which combination permits TIR?

Question 2 of 5 · A2.1.2

At the critical angle, the refracted angle is…

Question 3 of 5 · A2.1.2

Air-to-glass light can undergo TIR at that boundary?

Question 4 of 5 · A2.1.2

With C = 40°, which glass-to-air incidence gives TIR?

Question 5 of 5 · A2.1.2

Below C, which may still occur?
